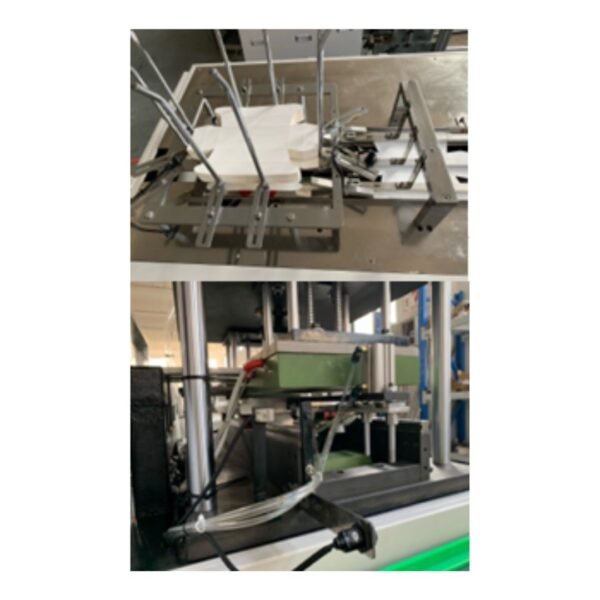

The paper adopts mechanical structure, automatic paper feeding and paper walking, stable and efficient, the first two molds after automatic corner folding heat forming, the product forming adopts aluminum alloy mold, keeping the mold precision while light and durable, the product bonding effect is good, bonding seamless, beautiful and solid box, is the ideal equipment for the production of folding paper box.
Technical Parameters：
| Paper box size | 200mm*130mm*40mm |
| Paper grams | 200-400gsm |
| Paper material | PE craft paper, PE carboard paer |
| Speed single lane | 30-50pcs/min |
| Speed double lane | 15-25 pcs/min |
| Power | 5KW |
| Weight | 1000kgs |
| Specifications | 1780mm*1860mm*1450mm |
| Air requirement | 0.5Mpa, 0.4cube/min |
| Cylinder Stroke | 150mm |
| Voltage | 380V,50Hz |
| Other | Customize |
