| Parameter | Specification |
|---|---|

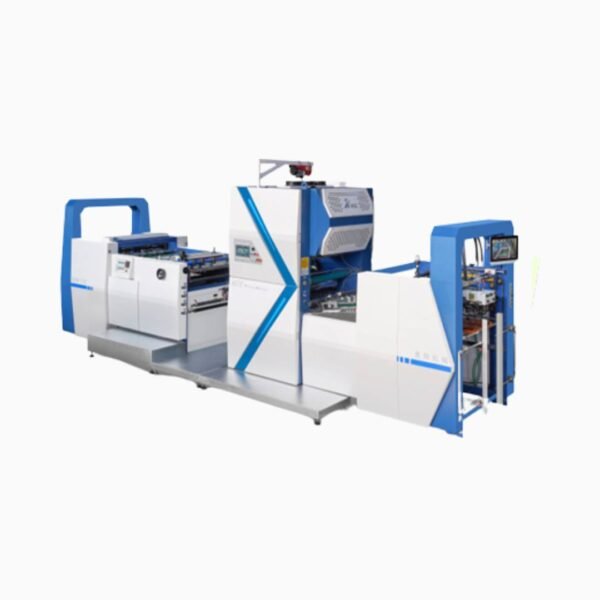

| Model | SGO-LS1100 |
| Max. Paper Size | 1000×1080mm |
| Min. Paper Size | 285×350mm |
| Recommended Paper Thickness | 100-500gsm |
| Recommended Film Thickness | 8~35 micron |
| Max. Speed | 100m/min |
| Voltage | 380V 50Hz |
| Total Power | 75KW (depends on configuration) |
| Working Power | 25~40KW |
| Lap Accuracy | ±2mm |
| Normal Lamination Pressure | 5~15Mpa |
| Coating Glue Amount | 3~8g/m² |
| Dimension (L×W×H) | 9600×2600×2700mm |
| Total Weight | 9500kg |
