| Sl No | Model | LFD420S |
| 1 | Die Cutting Speed | 300 times / min |
| 2 | Max Feeding Diameter | 500 MM |
| 3 | Max Web Width | 420 MM |
| 4 | Max Die Cutting Width | 410 MM |
| 5 | Max Die Cutting Length | 300 MM |
| 6 | Positioning Precision | ±0.10mm |
| 7 | Main Motor Power | 2.2 KW |
| 8 | Total Power | 3.5 KW |
| 9 | Power Supply Voltage | 220v±10% |
| 10 | Weight | 1700 Kg |
| 11 | Over All Dimensions | 2800×1150×1450(mm) |

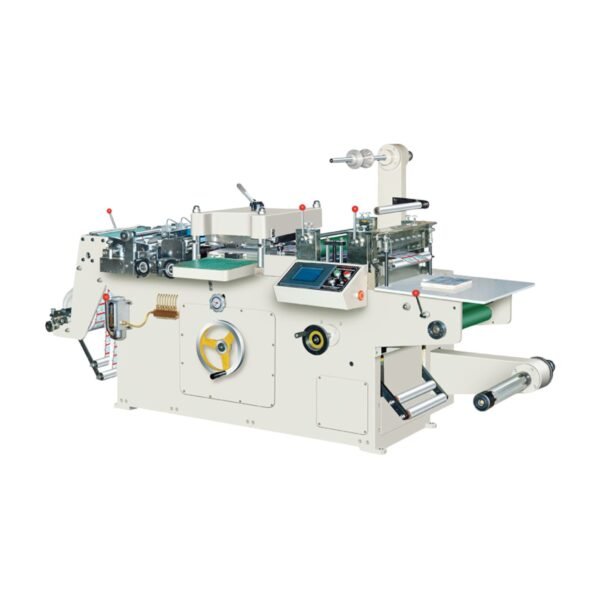

FLAT BED LABEL PUNCHING MACHINE / HOT STAMPING – LFD420S
Features :
- The machine is compatible for punching material from continuous screen printing , flexo printing , Gravure Printing , Security trade mark printing etc
- The machine is highly efficient and with a good speed and accuracy .
- The machine adopts most advanced electrical technology with servo function for precise accuracy in punching operations . The die cutting used in laser anti-falsification mark and film terylene mark has the serial winding function for the required finished products of automatic slicing and automatic mark-sticker. The main special performance of this machine is that the front and back, left and right of die cutting position are all controlled by photoelectricity.
- It has the functions of high precise orientation, stable feeding, equal tension, stepless speed regulation, automatic counting alarming etc., with convenient use and simple operation.
- The machine is equipped with punching / sheeting or rewinding of the paper reel as the case may be.
- With Double sensor , 1 for punching & 1 for foil stamping eye mark registration.
