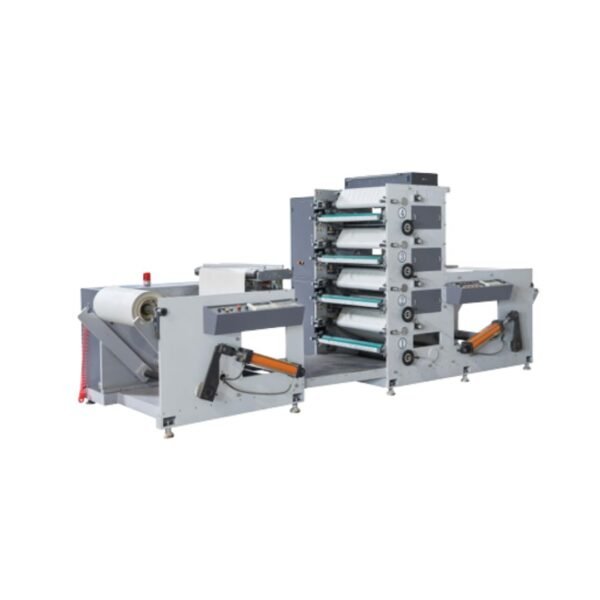

FLEXO PRINTING MACHINE - TOWER TYPE / VERTICAL TYPE - FLP950

FLEXO PRINTING MACHINE – TOWER TYPE / VERTICAL TYPE – FLP950

It’s a vertical machine with integrated drying facility at each station . A versatile machine with option to incrase / decrese colour sections & add UV sections. The feeding & discharging tension force are automaticaly adjusted through the magnetic powder brakes and clutches. Eash unit has 360 degrees registration adjustments and ink rollers have idle rotation features to prevent ink drying.

Description

Technical Details :

Code	Main Technical Parameter	FLP 950 B
1	Max Unwinding / Rewinding dia	1400mm
2	Printing Speed	120 m/Min
3	Printable Color	4 Colors
4	Max Web Width	950mm
5	Max printing Width	930mm
6	Printing girth	254mm—420mm
7	Main Motor Power	5.5KW
8	Power Supply	380V 3PH 50Hz
9	Plate Thickness	1.7mm
10	Paste version tape thickness	0.38mm
11	The thickness of the substrate	120g-250g
12	Overprint precision	±0.15mm
13	Total Power	37KW
14	Machine dimension	5.22.02.2m
15	Machine weight	About 6000KGS

Main Parts Details :

No.	Device	Specification	Quantity	Brand or producer
1	Main Motor	5.5KW	1	ShangHai
2	Frequency converter		1	Schneider
3	Rewinder Frequency converter		1
5	Guiding system		1	jinggong
6	Tension control		1	Mitsubishi
7	Relay		1	Omron
8	Breaker		1	LG
9	Contactor		1	Schneider
10	Control Button		1	Schneider
11	Pneumatic Control and comonents		1	AirTac
12	Ceramic Anilox roller		1	shanghai

13	Magnetic clutch power brake		1	HuaGuang 10K
14	Meter counter		1	ZHONGXING
15	Reminder motor	4KW	1	SHANGHAI
16	Plate Mounter		1	HUSONG MACHINERY

Spares:

Item	specification	QTY
IR lamp tube		4pcs
Switch	Green	2pcs
Switch	Black	2pcs
Contactor		1
Direct connection	APU6	2
Direct connection	APU8	2
Pressure regulating Valva	Sr200-08	1
Soleniod Valve	220v v210-08-DC220V	1
