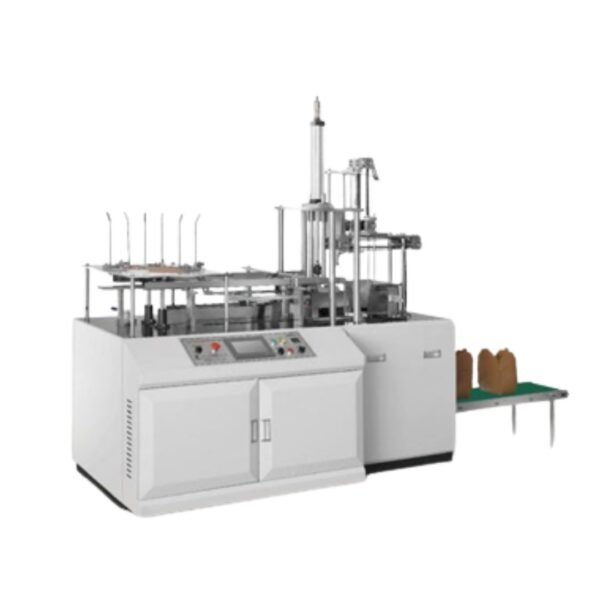

HEAT SEAL CARTON PASTING MACHINE – TRAYS / BOXES / CURLED TRAYS – H1000

The automatic carton thermoforming machine is a fully automatic paper forming machine with the advantages
of high speed and convenient operation. This model uses a self-contained hot air generator for single PE coated
paper. It is used to produce single-color disposable paper lunch boxes through automatic feeding, heating (with
hot air generating device), hot press forming (four corners of bonded lunch boxes), automatic point collection,
and microcomputer control. Paper lunch boxes, cake tray, food packaging boxes, etc. Mechanical transmission,
speed, energy saving, stability, and easy operation.

Technical Parameters:

Type H1000
Production capacity 35-45times/min(Actual production according to product size)
Maximum size: 300 x300mm
E-power voltage 380V 50HZ (can be changed)
Suitable Material: 200-400g/m2 PE  (PE Coated paper)
Total Power: 2.5KW
Total Weight: 0.4T
Overall Dimension: 1200 x 740 x 1900 mm
Working Air Source: Air pressure 0.4-0.5Mpa (Need to buy compressor)

Configuration:

Motor Main motor Schneider




Electrical parts

PLC Schneider
Frequency converter Schneider
Photoelectric switch Schneider
AC contactor Schneider
Breaker Schneider
Start switch Schneider
Temperature table Yatai


Pneumatic



Main cylinder Taiwan Yadeke
Other pneumatic originals Made in China
Bearing Haerbin
Servo

Motor



Schneider(two)
