1. Inspec on speed : 150m/mins(Depending on the label size and detec on content,
detec on accuracy, the speed is different, the smallest detectable
defect is 1mm)。
2. High precision : 50m/mins
NOTE : Depending on the label size and detec on content, accuracy, and speed not same.
3. Defect detec on : Blurred characters, missing print, dirt spots, misalignment, color
difference, gold stamping, defects.
4. Code detec on : one code，EN8，EN13，EN39，EN128，（light ≥1.5mm. Two
code（size>10*10mm）The barcode should be clear and may vary
depending on the content of the label), and does not contain a
variable code.
5. Code inspec on speed : 80piece/ss（It varies depending on the prin ng condi ons）。
6. Min color detec on : Camera imaging color △ E > 3
7. Network length : 30m

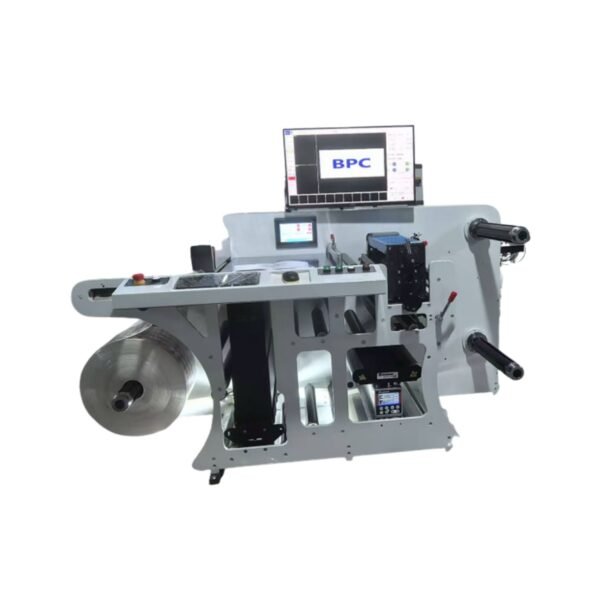

LABEL INSPECTION MACHINE – SA450
This machine is used to detect any prin ng error or spot or mistake on the label stock
primarily . This machine uses very hi resolu on camera together with so ware support to
detect the error and indicate the operator about the error so that he can take correc ve
ac on.
| Power | 220V 50/60HZ |
|---|---|
| Total power | 8KW |
| Max feed paper size | 450mm |
| Max inspec on size | 450*400mm |
| Min inspec on size | 50*30mm |
| Max unwind dia | 700mm |
| Max rewind dia | 600mm |
| Resolu on | 0.08mm |
| Weight | 2000kg |
| Size | 1900 (L) * 1300 (B) *1680 (H) MM |
