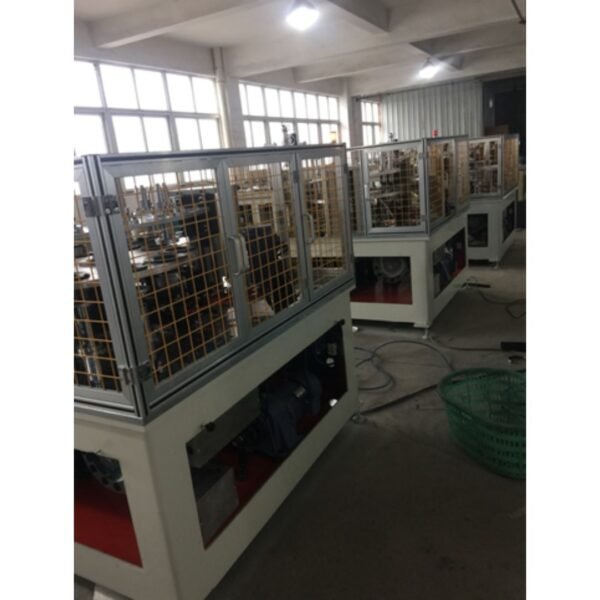

| Model | L-125 for lid cover of 65 – 125 MM | |||
| Technical Data | Control System | |||
| Cover High | 14-25mm | PLC Control | LG | |
| Cover Diameter | 65-125mm | Interface | Taiwan Weinview | |
| Paper Request | 0.35-0.52mm PE Coated Paper | Program version | ZGJ60 | |
| Max Rated Productivity | Max 50 Pcs/Min | Frequency converter | LG | |
| Bonding mode | Ultrasonic / Hot blow | Actuator(Contactor etc) | LG | |
| Number of operators | 1 | Signal element (Photoelectric light etc） | Panasonic | |
| Ajust control | Frequency converter | Pneumatic components | AIRTAC | |
| Power Souce | 380V 3PH 4Wire | Gear motor | LIBANG | |
| Move Track | Lishui | |||
| Ultrasonic | Shanghai shide | |||
| Heating device | BEST | |||
| Encoder | YASKAWA/AUTONICS | |||
| Accessories supplied | ||||
| Specifications | Common tools | 1 SET | ||
| Host：L*W*H | 2380mm*1600mm*1850mm | Heating | 1 SET（4 PCS） | |
| Weight | 2600KG | Vacuum Sucking | 20 PCS | |
| Host Power | 6KW | Screw / Tracheal connector | Several | |
For Bigger Size Lid cover from 130 – 190 MM dia :
| Cover High | 14-20mm |
| Cover Diameter | 130 – 190 mm |
| Paper Request | 0.35-0.52mm PE Coated Paper/PLA / water based paper coating , 300 to 450 gsm approx. |
| Max Rated Productivity | Max 45 Pcs/Min |
| Bonding mode | Ultrasonic / Hot blow |
| Number of operators | 1 |
| Adjust control | Frequency converter |
| Power Souce | 380V 3PH 4Wire |
| Size L*W*H | 2450mm*1700mm*1900mm |
| Weight | 3500KG |
| Host Power | 6KW |
