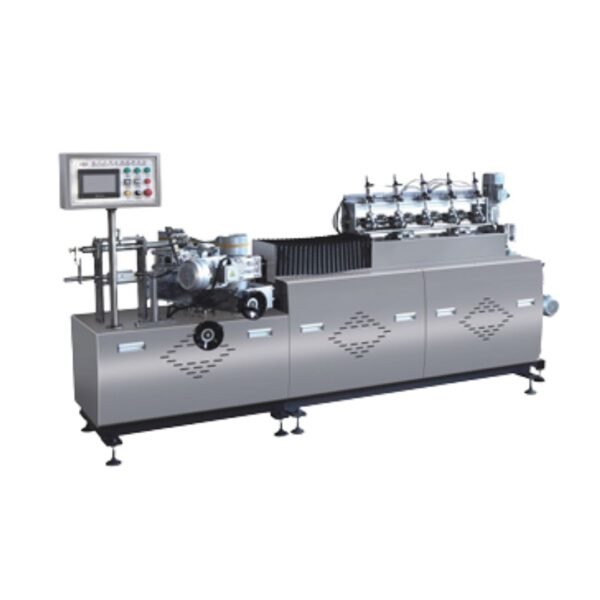

PAPER STRAW MACHINE – PS600

PS600 paper straw machine is a stainless steel high-speed paper straw machine with integrates paper feeding, gluing, winding and cutting. Equipped with a CNC multi-knife cutting system, the finished paper pipe can be cut online. 6 mm; 8 mm; 10 mm, etc. We have 5 , 6 , 7 cutting Knife options available as needed .

Send Inquiry

Technical Parameters:

Paper layer 3 layer
Volume tube diameter 4.7-12mm, 3mm(Customizable)
Volume tube wall thickness 0.5-2mm
Steady speed 25-40m/min
Pipe cutting system Synchronous motor tracking; Multiple cuts are made on the wire
The power supply 380V three-phase 50HZ
Paper frame, rubber frame 3
The belt 3 article
Mandrel 2 set
Size 3500*1150*1700mm
Operating area 7000*5000mm
Weight 1100kgs
